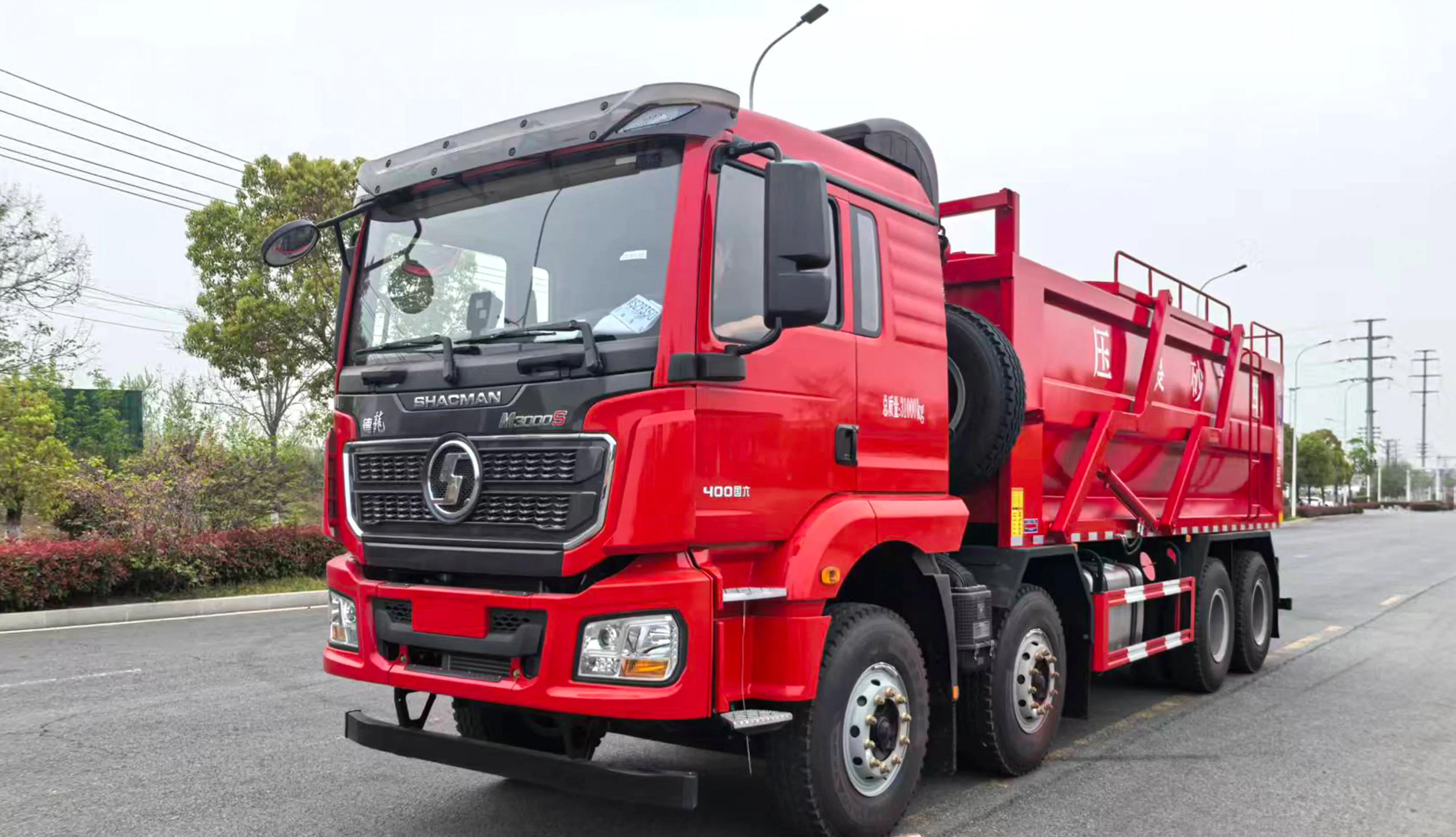

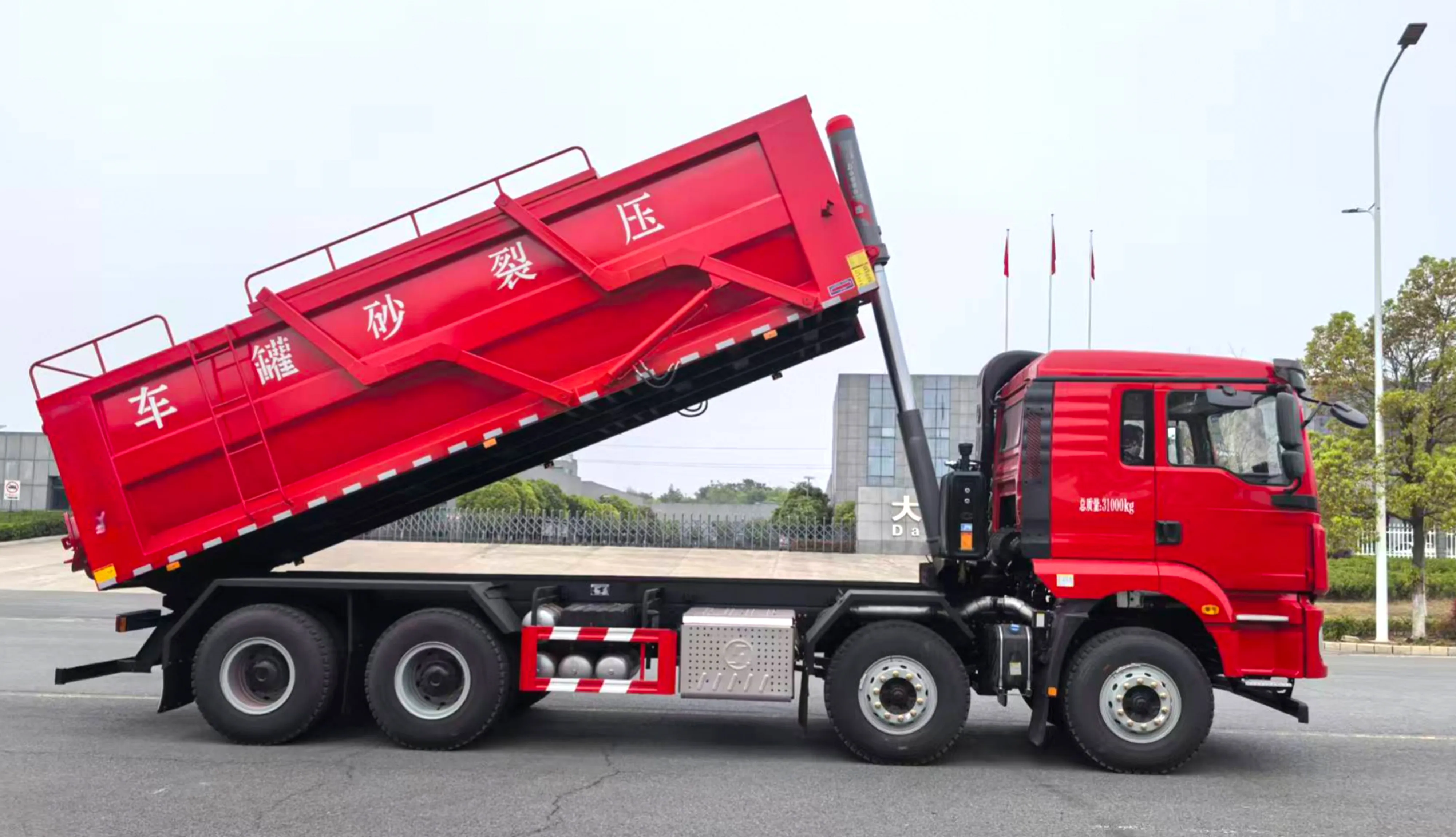

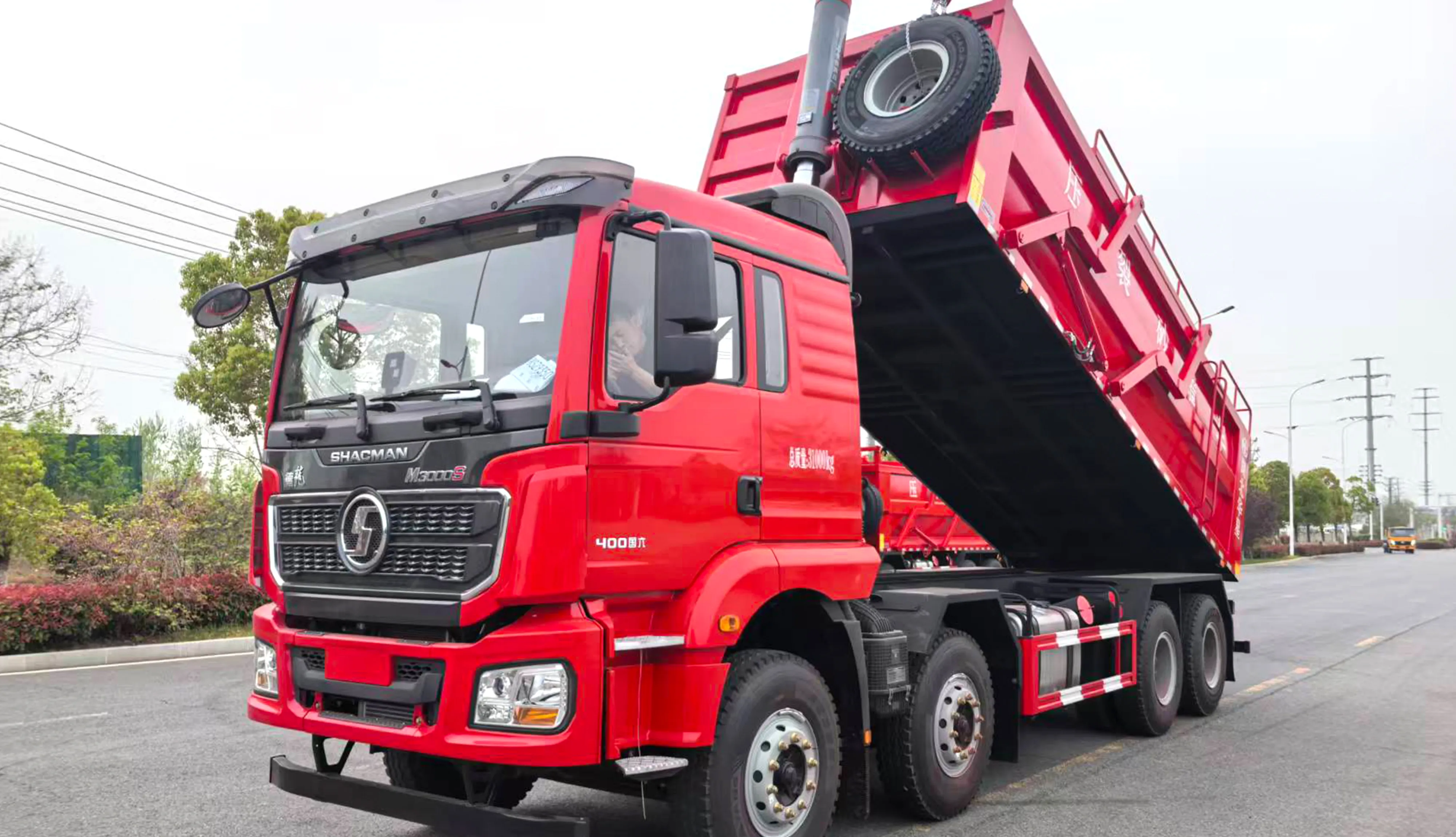

The fracturing Sand Tank Truck is mainly used for transporting fracturing proppants during oilfield fracturing operations. It is equipped with a lifting and conveying device, with optional hydraulic flip‑cover. Chassis brands such as SHACMAN and SINOTRUK are available for selection.
| Vehicle Technical Specifications | |||
| Product Trademark | Product Name | Sand Tanker | |
| Gross Mass(Kg) | 31000 | Tank Volume(m³) | 22/25 |
| Rated Payload(Kg) | 14170 | Overall Dimensions(mm) | 10050x2550x3450 |
| Curb Weight(Kg) | 16700 | Hydraulic Lifting Cylinder | Hyva/Permco |
| Approach Angle/Departure Angle(°) | 16/14 | Front Overhang/Rear Overhang(mm) | 1525/2200 |
| Axle Load(Kg) | 7500/7500/26000 | Maximum Speed(Km/h) | 89 |
| Tire | 12.R12 | Emission Standard | China National Stage Ⅵ Emission Standard |
| Engine Model | Engine Manufacturer | Displacement(ml) | Power(Kw) |
| WP10.400E62 | Weichai Power Co.,Ltd. | 8900 | 294 |
