700‑type Fracturing

The 700‑type fracturing truck serves as the main equipment for fracturing operations. It injects high‑pressure, large‑displacement fracturing fluid into the wellbore to fracture the formation and squeeze proppants into fractures. Its main components include chassis truck, on‑board engine, gearbox, plunger pump, radiator and control system. This fracturing equipment is mainly applied to various fracturing operations for deep wells, medium‑deep wells and shallow wells in oil‑gas fields such as shale gas and coalbed methane. It supports both standalone‑unit operation and multi‑unit linked operati...

Inquiry

E-mail：zyadmin@ywctrcuk.com

Detailed Description

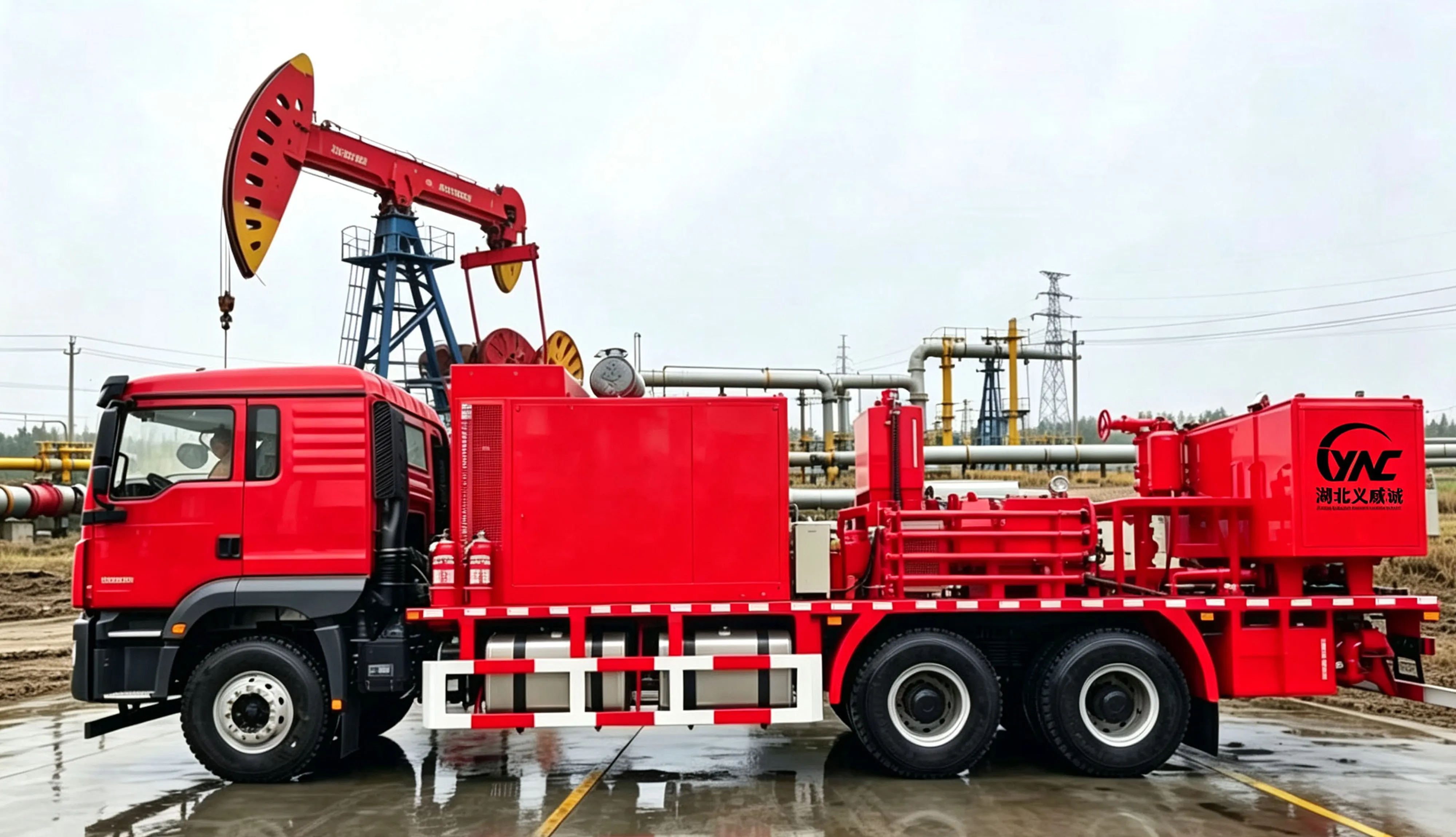

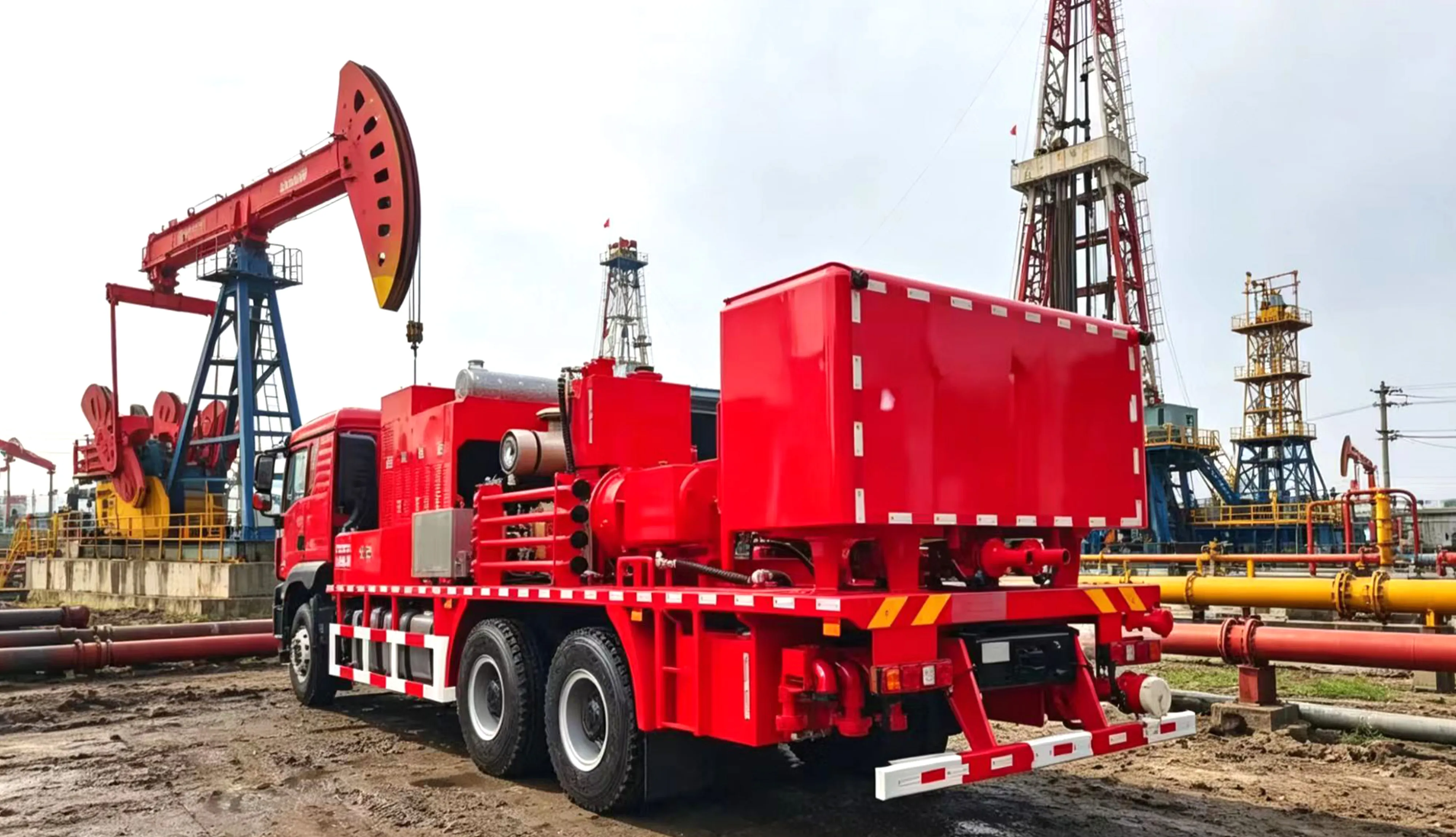

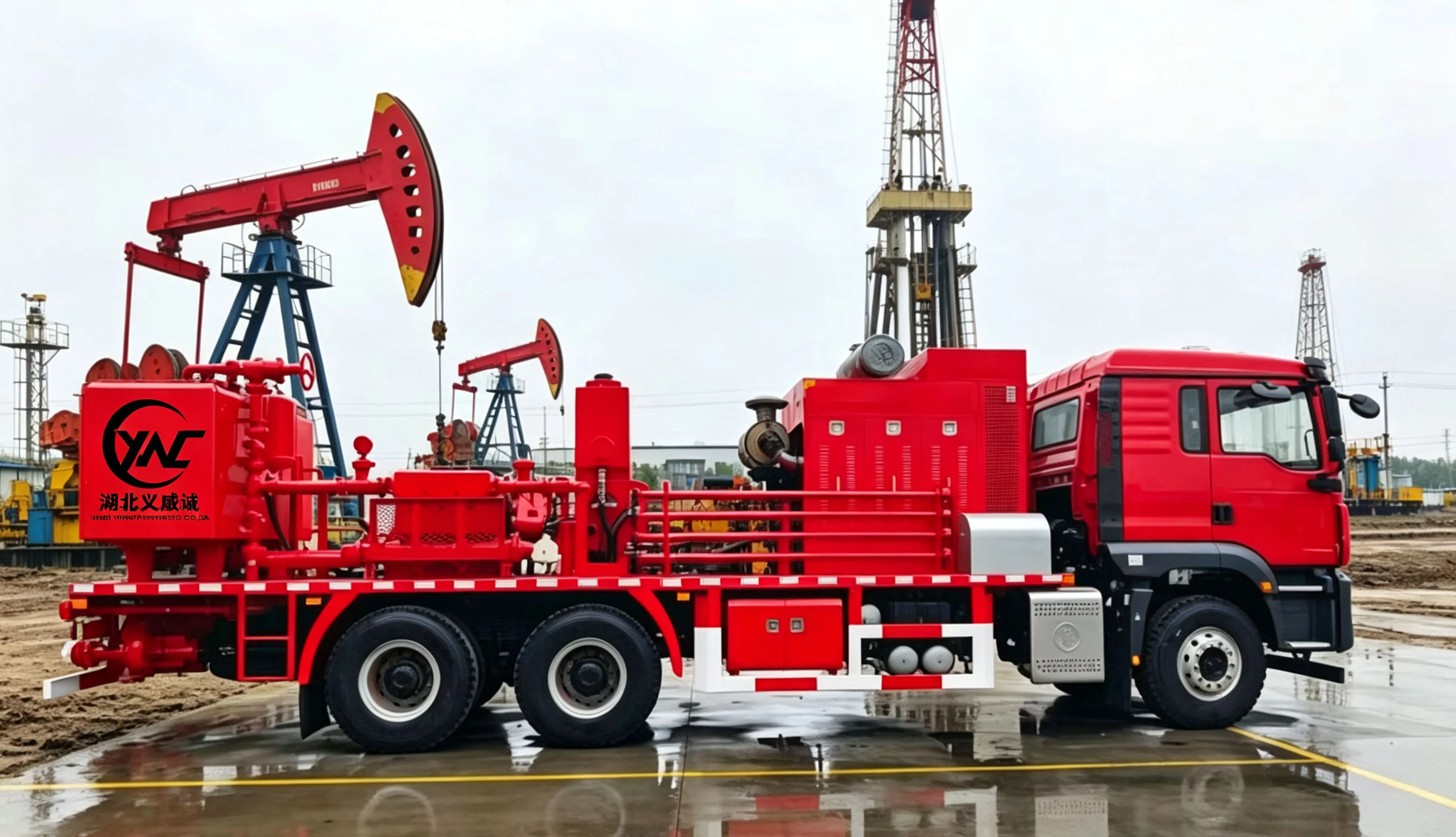

The 700‑type Fracturing truck serves as the main equipment for fracturing operations. It injects high‑pressure, large‑displacement fracturing fluid into the wellbore to fracture the formation and squeeze proppants into fractures. Its main components include chassis truck, on‑board engine, gearbox, plunger pump, radiator and control system. This fracturing equipment is mainly applied to various fracturing operations for deep wells, medium‑deep wells and shallow wells in oil‑gas fields such as shale gas and coalbed methane. It supports both standalone‑unit operation and multi‑unit linked operation.

Vehicle Technical Specifications
Product Trademark	Chu Sheng Brand	Product Name	fracturing truck
Chassis	SX1259MC4C1	Complete Vehicle Standar	Type 700
Maximum Working Pressure	70 MPa	Overall Dimensions(mm)	10150x2550x3560
Curb Weight Kg	20300	On board Engine	Cummins 550 HP, Weichai 530 HP, Caterpillar C15
Gearbox	Allison	Large Pump	Siji Plant,Lanzhou
Cooling System	Vertical Water Tank Horizontal Water Tank	Hydraulic System	Changjiang Hydraulic Machinery
Tire	12.R24	Control System	Jialong Centralized Control
Engine Model	Engine Manufacturer	Displacement(ml)	Power(Kw)
WP8.350E62 WP9.350E62	Weichai Power Co.,Ltd.	8400	285
